AdministrationBackup and restore

Backup and restore

You can backup and restore MOSTLY AI just like any other Kubernetes application in your infrastructure by using Velero.

Velero is an open-source tool to backup and restore Kubernetes resources, perform disaster recovery, and migrate Kubernetes cluster resources and persistent volumes. You can also use Velero to snapshot your application state before you perform system operations on your cluster, such as upgrades.

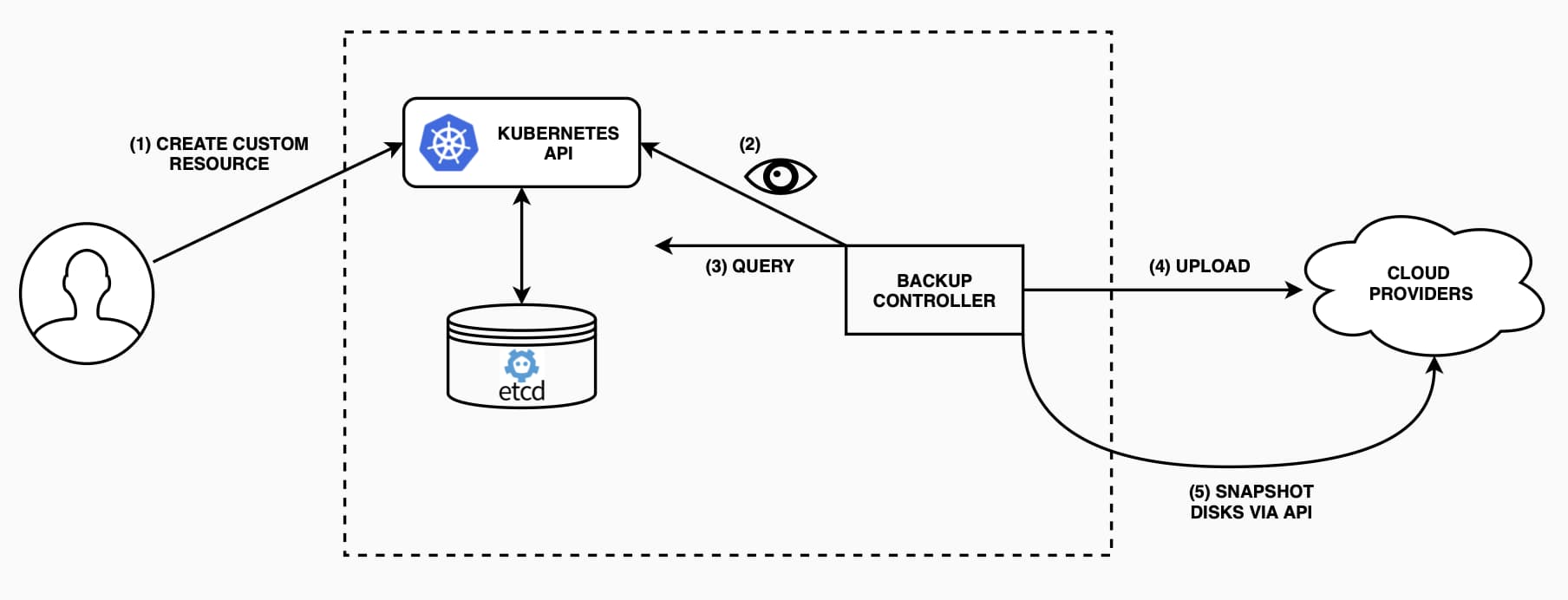

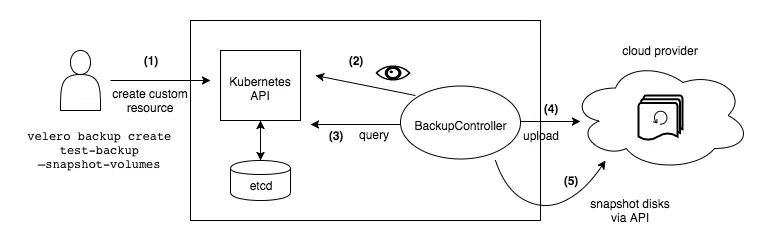

Backup workflow

Velero diagram

How does Velero work?

Each Velero operation (for example, on-demand backup, scheduled backup, or restore) is a custom resource, defined with a Kubernetes Custom Resource Definition (CRD) and stored in etcd. Velero also includes controllers that process the custom resources to perform backups, restores, and other all related operations.

You can back up or restore all objects in your cluster, or you can filter objects by type, namespace, and/or label.

Set up Velero

Prerequisites

  • Access to a Kubernetes cluster, v1.16 or later, with DNS and container networking enabled. For more information on supported Kubernetes versions, see the Velero compatibility matrix on GitHub.
  • Install kubectl.
  • Identify a storage provider.

    Velero uses object storage to store backups and associated artifacts. It also optionally integrates with supported block storage systems to snapshot your persistent volumes. Before installing, you should identify the object storage provider and optional block storage provider you want to use. See the list of compatible providers that Velero supports.

    Velero supports storage providers for both cloud-provider environments and on-premises environments. For more details on on-premises scenarios, see the on-premises documentation.
  • (Optional) To set up Velero CLI autocompletion, see Enabling shell autocompletion.

1. Install Velero CLI

Option 1: macOS / Homebrew On MacOS, you can use Homebrew to install the velero client:

brew install velero

Option 2: GitHub release

  1. Download the latest release’s tarball for your client platform.
  2. Extract the tarball:
    tar -xvf <RELEASE-TARBALL-NAME>.tar.gz

Move the extracted velero binary to somewhere in your $PATH (/usr/local/bin for most users).

Option 3: Windows - Chocolatey

On Windows, you can use Chocolatey to install the Velero client:

choco install velero

2. Deploy Velero Server

There are two supported methods for installing the Velero server components:

Note: if your object storage provider is different from your volume snapshot provider, follow the installation instructions for your object storage provider first, then return here and follow the instructions to add your volume snapshot provider.

If you are running MOSTLY AI on-prem, you can use your NFS as a storage destination for backup and restore.

For such cases, see Configuring an NFS Storage Destination*.

*Also configurable in air-gapped environments

3. Install Velero plugins

Velero uses plugins to integrate with a variety of storage systems and Kubernetes platforms to support backup, restore, and snapshot operations. For more information about plugins, see Velero Plugins.

Back up MOSTLY AI

The process below demonstrates the use of Velero to back up storage volumes and all resources for the MOSTLY AI Kubernetes application.

1. Check current namespaces

kubectl get namespaces

Output:

NAME                   STATUS   AGE
default                Active   40d
kube-node-lease        Active   40d
kube-public            Active   40d
kube-system            Active   40d
mostly-ai              Active   8d
nginx-ingress          Active   40d

2. Check Velero versions

Run:

velero version

Output:

Client:
	Version: v1.12.2
	Git commit: -
<error getting server version: no matches for kind "ServerStatusRequest"
in version "velero.io/v1">

3. Deploy Velero server on Kubernetes

velero install \
  --provider aws \
  --plugins velero/velero-plugin-for-aws:v1.8.2,velero/velero-plugin-for-csi:v0.6.2 \
  --bucket 453443601263-poc-backup \
  --secret-file ./velero_credentials \
  --backup-location-config region=eu-central-1 \
  --snapshot-location-config region=eu-central-1 \
  --use-volume-snapshots=true \
  --features=EnableCSI \
  --default-volumes-to-fs-backup \
  --use-node-agent

NOTE: When creating an AWS S3 bucket for backup destination storage, as well as creating AWS credentials, be sure to include the --secret-file parameter.

The expected format of velero_credentials file is:

[default]
aws_access_key_id = AKIXXXXXXXXXXXXXXX
aws_secret_access_key = 5LBB8XXXXXXXXXXXXXXXXXXXXXX

Check Velero versions once again to be sure client and server versions are in sync:

velero version

Output:

Client:
	Version: v1.12.2
	Git commit: -
Server:
	Version: v1.12.2

4. Create a backup with Velero

With Velero ready, you can create a MOSTLY AI backup.

Steps

  1. Initiate the backup with Velero.

    velero backup create mostly-ai-backup-poc --include-namespaces mostly-ai

  2. Check the status of the backup and its progress:

    velero backup describe mostly-ai-backup-poc

    Your output will be similar to the example shown below for a successful operation.

    Name:         mostly-ai-backup-poc
Namespace:    velero
Labels:       velero.io/storage-location=default
Annotations:  velero.io/resource-timeout=10m0s
              velero.io/source-cluster-k8s-gitversion=v1.27.8-eks-8cb36c9
              velero.io/source-cluster-k8s-major-version=1
              velero.io/source-cluster-k8s-minor-version=27+

Phase:  InProgress
{...}
Resources:
  Included:        *
  Excluded:        <none>
  Cluster-scoped:  auto
{...}
kopia Backups (specify --details for more information):
  Completed:  1
  New:        1

Result

You now have a backup of MOSTLY AI and all related artifacts.

What’s next

You can use Velero to get information about the backup

velero backup describe mostly-ai-backup-poc

The backup information should be similar to the template shown below.

Name:         mostly-ai-backup-poc
Namespace:    velero
Labels:       velero.io/storage-location=default
Annotations:  velero.io/resource-timeout=10m0s
              velero.io/source-cluster-k8s-gitversion=v1.27.8-eks-8cb36c9
              velero.io/source-cluster-k8s-major-version=1
              velero.io/source-cluster-k8s-minor-version=27+

Phase:  Completed

Restore MOSTLY AI from a backup

This process demonstrates how to clean up the MOSTLY AI Kubernetes resources and restore MOSTLY AI from a backup.

1. Clean up MOSTLY AI

To restore MOSTLY AI from a backup, make sure that the mostly-ai namespace no longer exists in your cluster.

Steps

  1. List the Helm releases installed in your cluster.
    helm list
    If you have MOSTLY AI deployed in your cluster, the output will be similar to the template shown below.
    NAME     	NAMESPACE	REVISION	UPDATED                             	STATUS  	CHART          	APP VERSION
mostly-ai	mostly-ai	6       	2023-12-05 16:11:11.386065 +0100 CET	deployed	mostly-ai-1.0.0	3.0.0
  2. Use helm to uninstall the MOSTLY AI release running in your cluster.
    helm uninstall mostly-ai
    If successful, the result from the command will be the following:
    release "mostly-ai" uninstalled
  3. Delete the mostly-ai namespace.
    kubectl delete namespace mostly-ai
    Output on success:
    namespace "mostly-ai" deleted
  4. Verify that the mostly-ai namespace no longer exists.
    kubectl get all --namespace mostly-ai
    You will see the following:
    No resources found in mostly-ai namespace.

2. Restore MOSTLY AI from a backup

Making sure that the mostly-ai namespace does not exist, you can now restore MOSTLY AI from a backup with Velero.

Steps

  1. Use velero restore to initiate a restore from a backup.

    The command below uses the mostly-ai-backup-poc backup that was created in the previous sections and names the restore as mostly-ai-restore-poc.

    velero restore create mostly-ai-restore-poc --from-backup mostly-ai-backup-poc

  2. Check status of the restore:

    velero restore describe mostly-ai-restore-poc

    The output will be the following for a successful operation:

    Name:         mostly-ai-restore-poc
Namespace:    velero
Labels:       <none>
Annotations:  <none>

Phase:                                 InProgress
Estimated total items to be restored:  93
Items restored so far:                 93

Started:    2023-12-21 08:18:34 +0100 CET
Completed:  <n/a>

Backup:  mostly-ai-backup-poc
{...}

Existing Resource Policy:   <none>
ItemOperationTimeout:       4h0m0s

Preserve Service NodePorts:  auto

  3. Check the mostly-ai namespace:

    kubectl get all --namespace mostly-ai

    The output should be the following:

    NAME                                      READY   STATUS    RESTARTS      AGE
pod/mostly-app-57c86ffc9f-46m9x           1/1     Running   0             84s
pod/mostly-coordinator-86c4f9f588-gd4cc   1/1     Running   2 (39s ago)   84s
pod/mostly-data-fd7bb94dd-57xcb           1/1     Running   0             84s
pod/mostly-keycloak-777b555447-gf5lw      1/1     Running   0             84s
pod/mostly-psql-0                         1/1     Running   0             84s
pod/mostly-ui-864ffb7799-hlq6x            1/1     Running   0             84s
pod/replicated-6748579dd9-jbpzq           1/1     Running   0             84s

NAME                         TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)              AGE
service/mostly-app           NodePort    172.20.10.105    <none>        8080:31125/TCP       82s
service/mostly-coordinator   ClusterIP   172.20.7.60      <none>        8081/TCP             81s
service/mostly-data          ClusterIP   172.20.206.27    <none>        8000/TCP             81s
service/mostly-db            ClusterIP   172.20.130.113   <none>        5432/TCP             81s
service/mostly-keycloak      NodePort    172.20.113.58    <none>        8080:31784/TCP       81s

service/mostly-ui            NodePort    172.20.5.52      <none>        8888:31465/TCP       81s
service/replicated           ClusterIP   172.20.165.239   <none>        3000/TCP             81s

NAME                                 READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/mostly-app           1/1     1            1           81s
deployment.apps/mostly-coordinator   1/1     1            1           81s
deployment.apps/mostly-data          1/1     1            1           80s
deployment.apps/mostly-keycloak      1/1     1            1           80s
deployment.apps/mostly-ui            1/1     1            1           80s
deployment.apps/replicated           1/1     1            1           80s

NAME                                            DESIRED   CURRENT   READY   AGE
replicaset.apps/mostly-app-57c86ffc9f           1         1         1       83s
replicaset.apps/mostly-coordinator-86c4f9f588   1         1         1       83s
replicaset.apps/mostly-data-fd7bb94dd           1         1         1       83s
replicaset.apps/mostly-keycloak-777b555447      1         1         1       83s
replicaset.apps/mostly-ui-864ffb7799            1         1         1       83s
replicaset.apps/replicated-57d8f65c98           0         0         0       83s
replicaset.apps/replicated-6748579dd9           1         1         1       83s
replicaset.apps/replicated-77d9748bd            0         0         0       83s
replicaset.apps/replicated-7d4d987ccc           0         0         0       83s
replicaset.apps/replicated-7d6c87494c           0         0         0       82s

NAME                           READY   AGE
statefulset.apps/mostly-psql   1/1     78s

  4. Check the status of the MOSTLY AI pods.

    kubectl get pods

    The MOSTLY AI pods will be running and stable.

    NAME                                  READY   STATUS    RESTARTS      AGE
mostly-app-57c86ffc9f-46m9x           1/1     Running   0             2m
mostly-coordinator-86c4f9f588-gd4cc   1/1     Running   2 (75s ago)   2m
mostly-data-fd7bb94dd-57xcb           1/1     Running   0             2m
mostly-keycloak-777b555447-gf5lw      1/1     Running   0             2m
mostly-psql-0                         1/1     Running   0             2m
mostly-ui-864ffb7799-hlq6x            1/1     Running   0             2m
replicated-6748579dd9-jbpzq           1/1     Running   0             2m
